Quick Lattice


Tired of setting up lattices?

Looking for a non-destructive way to modify your models?

Quick Lattice is what you are looking for! Do not wait more!

What its does?

Automating the process of warping an object in a lattice cage.

Setting the size, position, rotation, resolution, interpolation, modifier, etc.

This will save you a lot clicks and other boring settings.

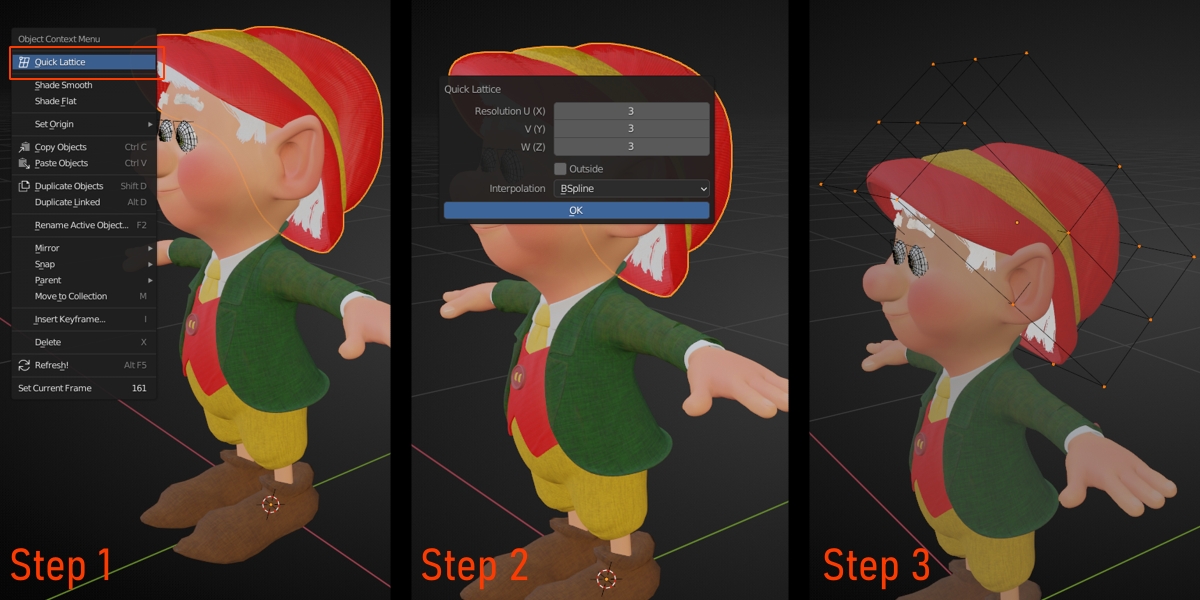

Usage

  1. Select the target object
  2. Right Click Menú -> Quick Lattice (or W for Right Click Select Users)
  3. Deform your models with Quick Lattice!

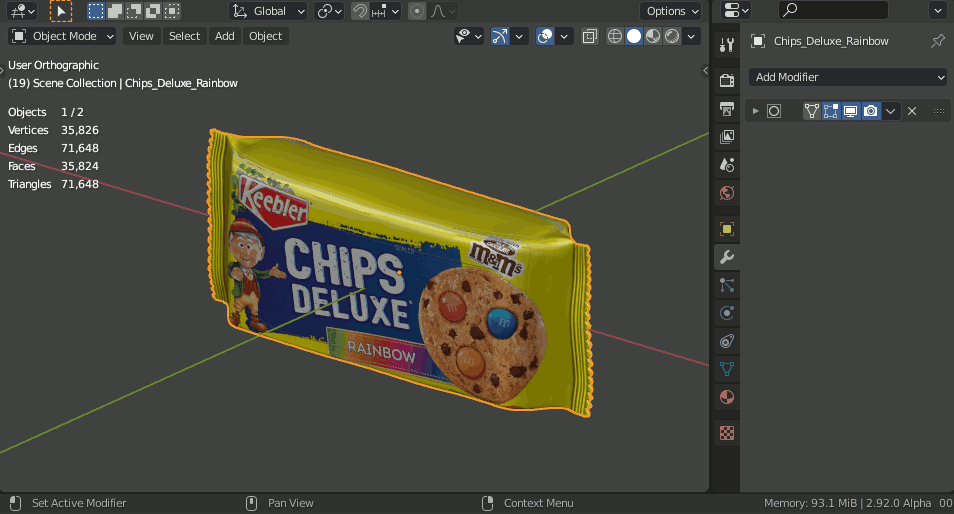

New features added on version 0.6


Available for download

gumroad-logo.png blender-market-logo.png github-logo.png

Instalation

  1. Download the zip file “quick_lattice_[version].zip”
  2. If you have an older version, uninstall it first (on addon preferences).
  3. Go to Blender > User Preferences > Addons > Install (choose the .zip file)
  4. Activate the addon.
  5. Enjoy it!

Changelog

  • 0.3.0 First Release!
  • 0.3.1 Fix: Crash On Undo, reported by BluePortal77
  • 0.4.0 Add Last Operation Support

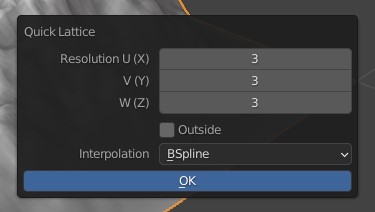

  • 0.5.0 Add Popup Dialog and User Preferences option
  • 0.6.0 Add User Preferences to set the Default Resolution and Interpolation of Lattices
  • 0.7.0 Now this addon use multifile structure (.zip)
  • 0.8.0 New Preferences

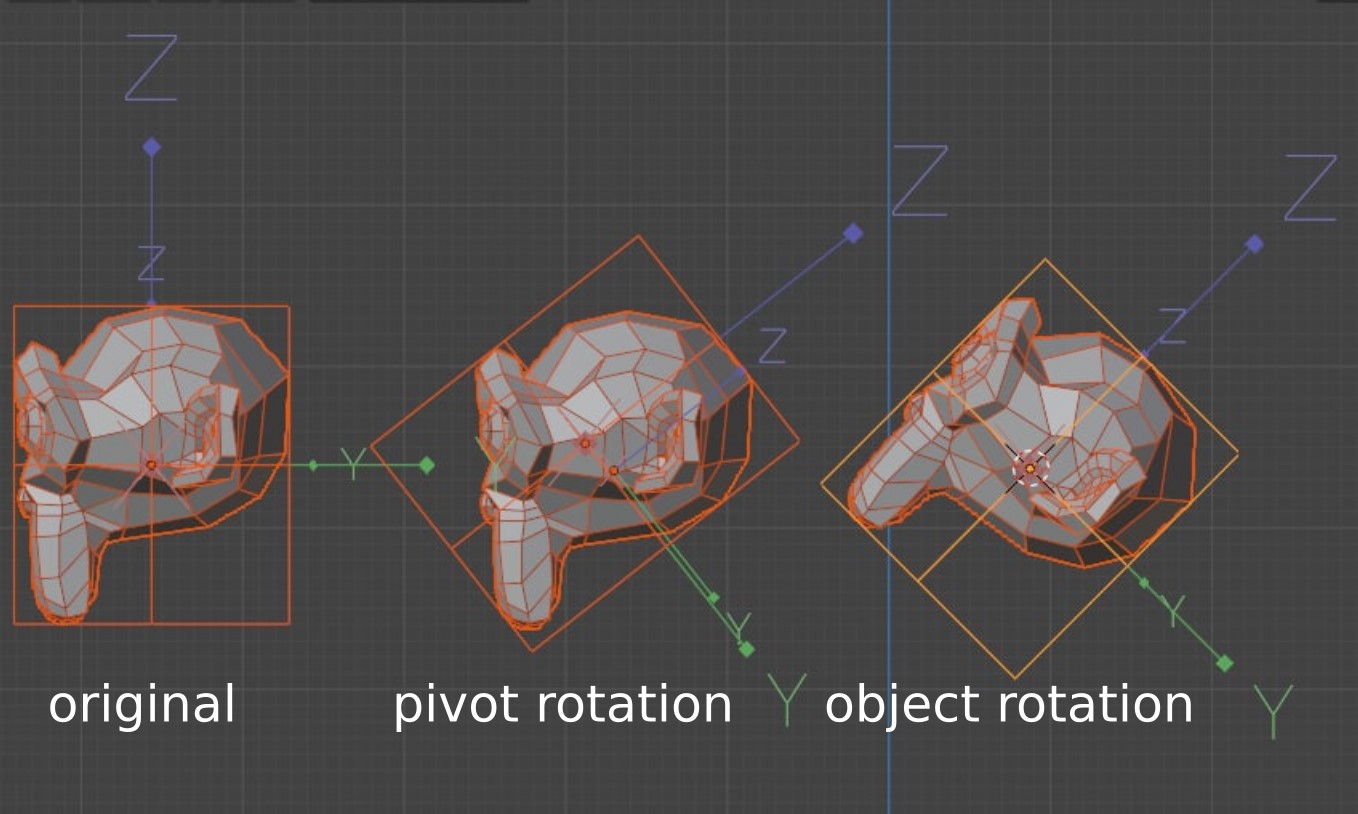

Known Issues

When the object’s pivot is rotated (but not the whole object), the result may not be what you want. In those cases, try applying the rotation first (Ctrl + A).

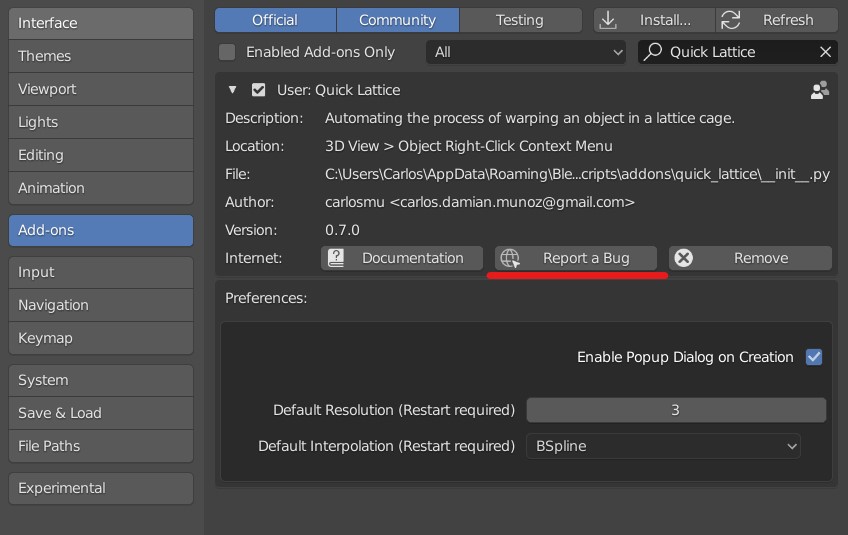

Report a Bug

If you have any problem, report it on Addon Preferences. I will solve it as soon as possible.

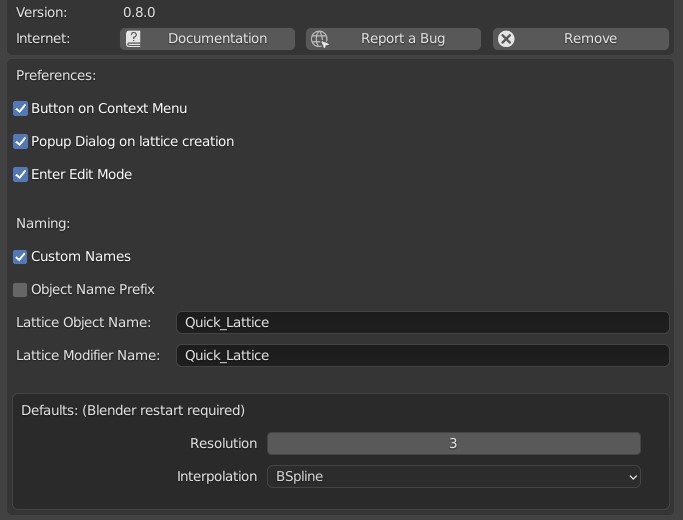

Version 0.8 (Apr 09, 2021)

A lot of new preferences came with version 0.8. Now you can choose the default behavior that you prefer:

  1. Deactivate Button on context menu.

  2. Deactivate enter edit mode after creation.

  3. Custom naming for Lattice object and modifier.

  4. Object name prefix.

IMPORTANT: If you update from 0.7 you need to remove this version first, restart Blender, and just then install version 0.8. If you don’t restart blender the new preferences won’t load.
